Niiiiiiice!!
Show off yer sluice
- Thread starter barleetow
- Start date
Niiiiiiice!!
- Jan 6, 2014
- 13,551
- 47,883
- Detector(s) used
- White's prizm IV
Keene A52 with Gold Hog mats
Gold-N-Sand hand dredge
- Primary Interest:
- All Treasure Hunting
COOL!!
Patent that thing...
I like everything I have seen in this thread. Bunch of talented, ingenious and way to think atta the box... people
Goodyguy
Gold Member
- Mar 10, 2007
- 6,489
- 6,900
- Detector(s) used
- Whites TM 808, Whites GMT, Tesoro Lobo Super Traq, Fisher Gold Bug 2, Suction Dredges, Trommels, Gold Vacs, High Bankers, Fluid bed Gold Traps, Rock Crushers, Sluices, Dry Washers, Miller Tables, Rp4
- Primary Interest:
- All Treasure Hunting
Guess I'll go ahead and "show off" my "Hoosier Gold Daddy" wash plant..........
Can be used as a single unit that will self classify from 1" down to 1/8" by using vibrators.
The classified material then drops into the folded vortex gate trap sluice where it is reduced to super concentrate.
It is capable of reducing 1500 lbs of material into 2 quarts of super concentrate per hour.
The use of folding (zig zagging) allows for a total of 12 feet of working sluice (six feet of classification and six feet of concentration) to be contained in a single compact easy to transport unit.
The folded vibrating classifier section is detachable and has three separate classification screens set at 15 degree angles and works either wet or dry.
The folded vortex gate trap sluice (on right) can also be used as a stand alone sluice for running pre-classified material.

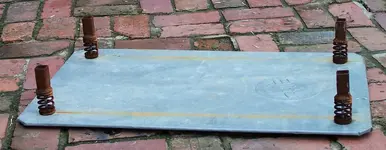

The legs sit into sockets mounted on valve springs.
The vibrators are made from two 12V sanders from harbor freight. I use a 12V deep cycle battery to power them.
They would have to be sychronized to operate properly but I found that I only need to run one at a time so the other one is only used as a back up unit.
This outfit was designed specifically for capturing the fine glacial drift gold found in the Hoosier state of Indiana.
But works anywhere in the country, even in the desert, with sleight modifications.
GG~
Can be used as a single unit that will self classify from 1" down to 1/8" by using vibrators.
The classified material then drops into the folded vortex gate trap sluice where it is reduced to super concentrate.
It is capable of reducing 1500 lbs of material into 2 quarts of super concentrate per hour.
The use of folding (zig zagging) allows for a total of 12 feet of working sluice (six feet of classification and six feet of concentration) to be contained in a single compact easy to transport unit.
The folded vibrating classifier section is detachable and has three separate classification screens set at 15 degree angles and works either wet or dry.
The folded vortex gate trap sluice (on right) can also be used as a stand alone sluice for running pre-classified material.
The legs sit into sockets mounted on valve springs.
The vibrators are made from two 12V sanders from harbor freight. I use a 12V deep cycle battery to power them.
They would have to be sychronized to operate properly but I found that I only need to run one at a time so the other one is only used as a back up unit.
This outfit was designed specifically for capturing the fine glacial drift gold found in the Hoosier state of Indiana.
But works anywhere in the country, even in the desert, with sleight modifications.
GG~
Last edited:
Aufisher
Bronze Member
- May 12, 2013
- 1,948
- 4,830
- Detector(s) used
- Whites Goldmaster V/SAT. VibraProbe. Bazooka 48" Prospector Sluice. Shorts. Chickens + Goats + Goldhounds. 35' Chris Craft Caribbean motorsailer. FISH OIL + BURLAP
- Primary Interest:
- Prospecting
Sweet setup GG!
sideshowmick
Jr. Member
This is my set up running
And this is some of the gold it has caught.
Pretty small stuff
And this is some of the gold it has caught.
Pretty small stuff
KevinInColorado
Gold Member
- Jan 9, 2012
- 7,044
- 11,395
- Detector(s) used
- Minelab Gold Monster 1000, Grizzly Goldtrap Explorer & Motherlode, Gold Cube with trommel or Banker on top, Dream Mat combo sluice, Angus Mackirk Expedition, Gold-n-Sand Xtream Hand pump
- Primary Interest:
- Prospecting
Very cool setup and good job catching the fine gold. As the nominated and accepted Master of Fly Poop, I hereby knight you a fellow MFP!
sideshowmick
Jr. Member
Lol. That pic indeed is what went through my ii00 screen.
Justbent
Full Member
Justbent
Full Member
Justbent
Full Member
so 10 second per bucket was a pretty good guess.
sideshowmick
Jr. Member
Good work man! Get some mats in there!
Sample Pan Dan
Bronze Member
Justbent, I really dig the wall sluice. Bad ass! Perfect for those like myself with limited space.
Justbent
Full Member
ya, I made it for a guy who's traveling from camp to camp prospecting. He wanted something easy to setup and dismantle quickly. He showed me something I thought was junk so this is my version. He's gonna put the deep ribbed rubber Matt in.
Justbent
Full Member
Field test
Hot zone
Bronze Member
- Apr 26, 2012
- 1,032
- 259
- Detector(s) used
- Tiger Shark 8" coil, vaquero 8"x9" and 5.75" WS, clean sweep coil, Gray ghost deep woods headphones
Whites TRX pointer
, Garrett gold stinger
- Primary Interest:
- All Treasure Hunting
who says gold prospectors are not environmentally conscious... No muddy water, pollution from gas motor when recirculating with 12 vt pump and using solar power with gold cradle...I would show you some gold, but like fly fishing in Wa State it mostly been catch and release!
Last edited:
Justbent
Full Member
More evolution
Sample Pan Dan
Bronze Member
Looks like y'all are having a good time!
Justbent
Full Member
it's fun to build but the test is the best.
Justbent
Full Member
Justbent
Full Member
You talkin about the Big Blue One?
Her's little brother....
Her's little brother....
