Waiting for the deep freeze to end here to try out my added on AM forman sluice.



Amazon Forum Fav 👍

Minelab PRO-FIND 35 Waterproof Pinpointer Metal Detector for Experts with Tone ID & Adjustable Sensitivity - Grab it through Amazon!

[elgatodelnoche]

Ok... After some field testing of the sluice I posted at the start of this thread I've decided that it still won't move enough materials for my taste. soooo... I'm in the process of designing a new setup that will. It's something like a cross between a Gold Hog Viper and a Gold Cube and will have a 4000GPH pump. Half inch grizzly on the header box to eliminate classifying. Not shown in the rendering is the tailing slide off of the header box to keep the junk from falling into the tank.

View attachment 895045View attachment 895046

There are a lot of construction details I didn't include in the renderings like hinges and supports but I am including them in the CAD drawings I'm doing.

EDIT: When finished and tested out I'll post CAD drawings and a parts list including sources if anyone is interested.

Is that Bryce?



[goldenIrishman]

Of course! I love that program for stuff like this.



[3 N 1 PRODUCTIONS]

I like it

My DIY super fluid bed high banker 3" dredge sluice designed for high production fine glacial gold recovery..........................
View attachment 914671View attachment 914672View attachment 914673


I like how you have the nozzle come in from the top

Also my DIY fluid bed combination highbanker/stream sluice with fold out wing dam......
View attachment 914674View attachment 914675View attachment 914678





Almost left out my DIY concentrator sluice................
View attachment 914680

Plus many more but these are my favorites.



Go for the gold,
GG~

I like how you have the nozzle come in from the top



[AzViper]

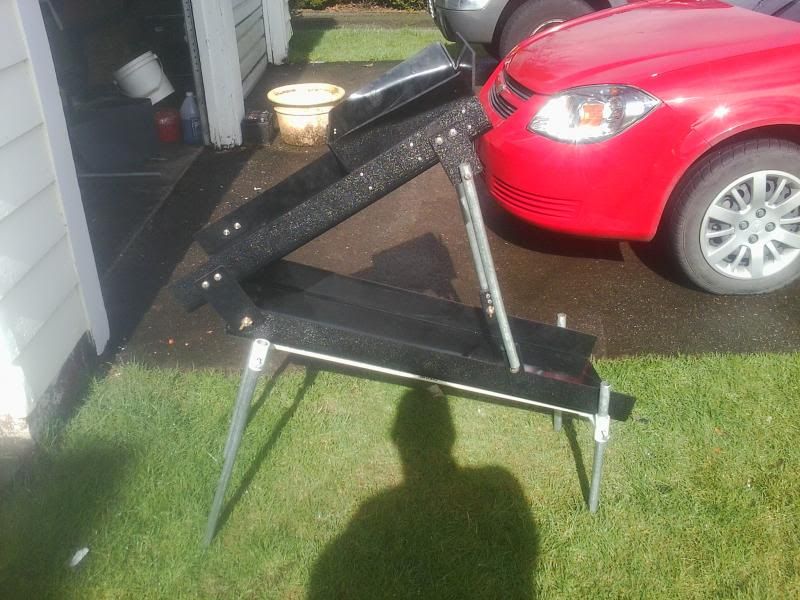

Changed the legs on my sluice of which makes for a very solid stand...



[Justbent]

I like how you have the nozzle come in from the top

i like how you have one for every occasion. Nice.



[Goldwasher]

O.K.



[Hangtowndiggins]

O.K.

Awesome sluices, I'm diggin the camo job



[goldenmojo]

Here is the Super Mini on the SF American today. Had a jam up in the grizzlies from force feeding it at the same time that I saw this flake. Grabbed the box out of the water, got the flake stuck to my finger and got the snuffer cap off. Somewhere between my finger and the snuffer the flake disappeared never to be seen again. I call it catch and release. Other than that the BGT did what it is supposed to do.



[Aufisher]

O.K.

Bad ass!



[Aufisher]

O.K.

Bad ass! Twice lol



[mike(swWash)]

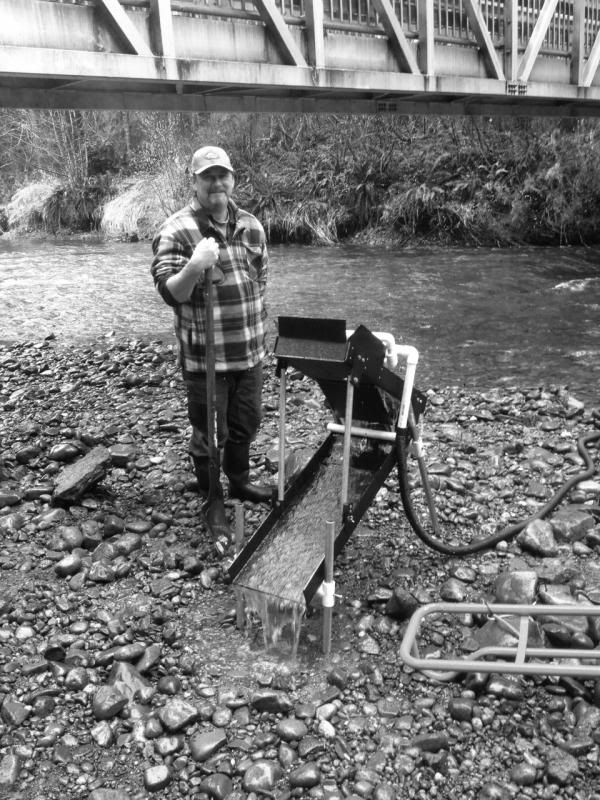

My homemade highbanker.

3/16 screen dropping onto 1' x 3' vortex mat. If it hits the mat, it stays until clean out. Hold everything from 1/8" down to minus flypoop.


Last weeks take from 4hrs digging...



[KevinInColorado]

Wow, really pro looking...good work!



[Goodyguy]

My homemade highbanker.

3/16 screen dropping onto 1' x 3' vortex mat. If it hits the mat, it stays until clean out. Hold everything from 1/8" down to minus flypoop.

I can show you how to easily modify a few rows of the vortex mat to catch up to 3/8" nuggets.

(PM me)
GG~



[crazywolfminingco]

here is a col way to use my rocker box at home. a removable water spicket just slides on and off the hopper.



[Mike RB.]

I have a couple pics...I should really work on my photography skills.



[cshirsch]



[Sample Pan Dan]

I like your setup Chris, very impressed.



[KevinInColorado]

Very nice gear and spot
...show us some gold too!



[sideshowmick]

YouTube Link: https://www.youtube.com/watch?v=KCQd480jvOc&feature=em-upload_owner

Niiiiiiice!!
