Im back with a 6" Build

[oragonads]



Amazon Forum Fav 👍

Minelab PRO-FIND 35 Waterproof Pinpointer Metal Detector for Experts with Tone ID & Adjustable Sensitivity - Grab it through Amazon!

[oragonads]



[oragonads]



[principedeleon]

You should put in a winch for adjusting the sluice box and maybe a homemade jet that could be in tune with your GPM coming from your pump. I had a poor suction with a single engine setup because it produce less water. I had two choices create more pressure closing the openings in my jet or going with a two engine setup. I haven't tried it but im sure it's going to be perfect when I put these two 8hp engines on it.



[oragonads]

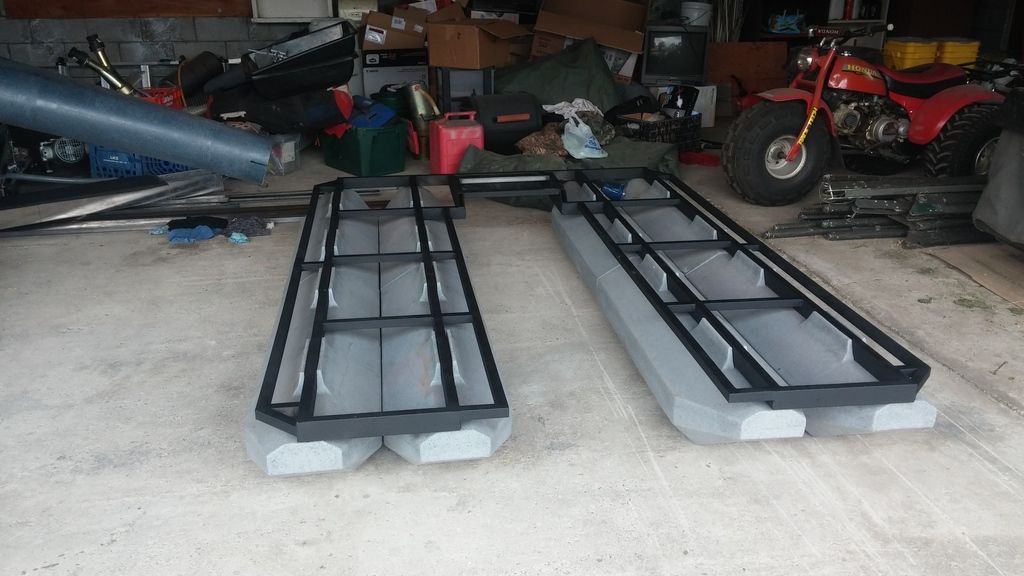

I do have a worm gear winch I was going to use for adjusting the slice angle but decided to hang the slice by chain at the end of the frame. I'll be able to adjust the sluice in about 1/2" increments. The front of the sluice/flare sits on an adjustable crossmember that slides along either side of the frame to adjust weight distribution.



[oragonads]

I also have a custom jet that was built for this engine/pump combo



[principedeleon]

The winch lets you adjust when the dredge is running .. Is a big plus for me. But it sounds great . Glad to see everything going straight forward for you and your build.



[oragonads]

Thanks man. I was hoping to be down to the claim by now, dredging season starts today on it. Unfortunately waiting for some more funds to hit my bank account on the 20th before I head down there. I also ordered some gauges for my 95 7.3 powerstroke that I just got on the 5th only to find that they were out of stock and they havnt shipped them yet, nor will they have any to shop until later this week.



[principedeleon]

I should be in the water too since it just rained and the river haves water over where I'm from in Dominican Republic.

I just haven't finished buying everything i need just because I want to be spending money on a raptor trying to send it out there too. Can't wait to dredge this river with this beast im planning on finish building.



[oragonads]

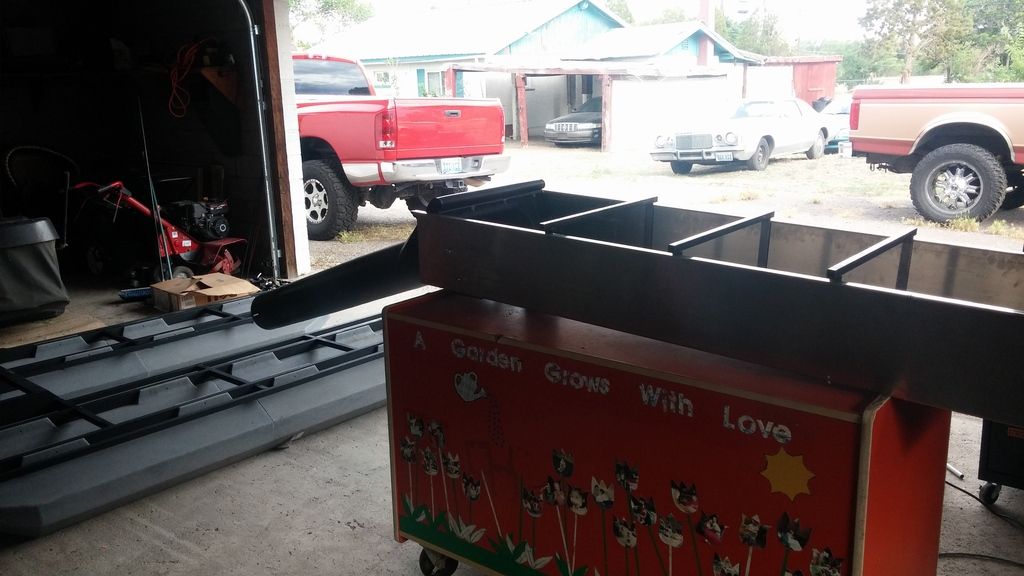

Quick little update, sluice box is about 95% done. Just need to finish up the classifying section and figure where my clamps have gone so I can mount them up.

Shop is a bit unorganized right now, too much dredge parts laying around.
https://youtu.be/oqqWOW8kv-s



[oragonads]

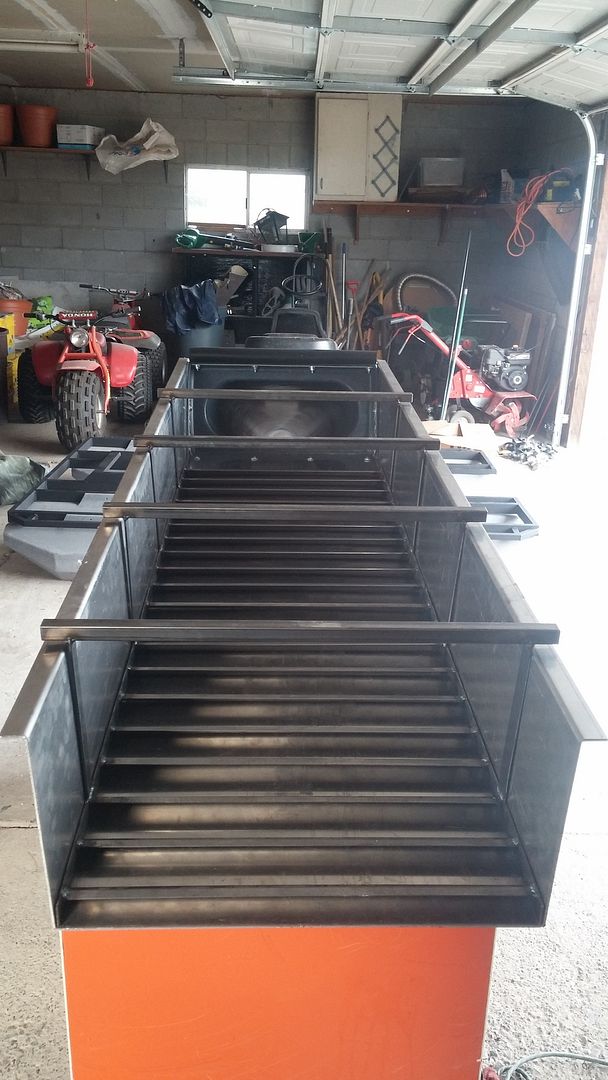

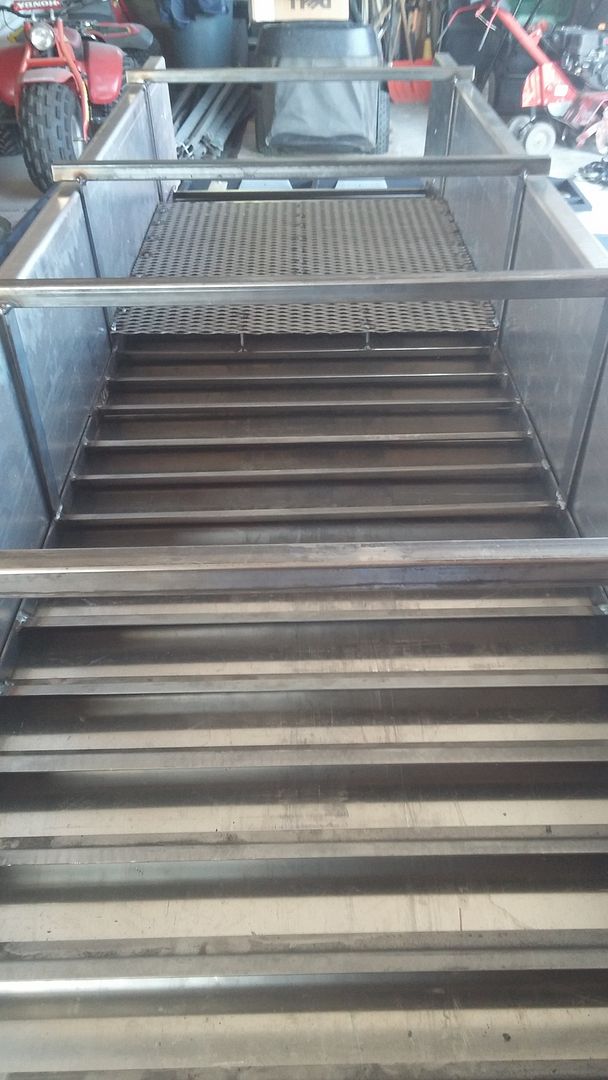

Riffle system is done! It's too damn got today so I'll find the clamps and mount them tomorrow morning.



[oragonads]



[russau]

that dredge ought to do some azz kicking for sure! good luck!



[specksandflecks]

Must be into some big gold. That's a lot of riffle. No UC? How much for those 3 wheelers? They look new.



[oragonads]

Must be into some big gold. That's a lot of riffle. No UC? How much for those 3 wheelers? They look new.

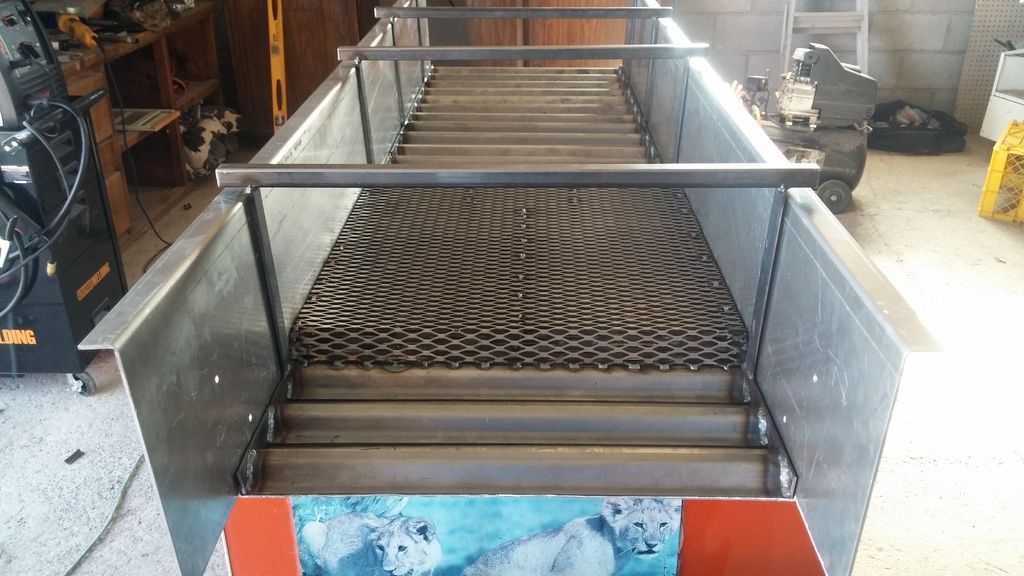

Decided not to go with an undercurrent as I didn't particularly want to fab one up. I also don't have very much fine gold on my claim. Mostly chunky rough stuff. I've got some large expanded under the screen followed by 2 riffles at the last portion of the classifying screen. The screen is 24" long with about 2p" of large expanded over miners moss. The rest of the sluice will be carpet.

I believe I paid $800 for both the 3 wheelers back in Oregon.
