kb4iqm
Sr. Member
I bought a Coinalyzer coin sorter recently and was having issues with it. This was discussed a little bit in another thread, but I felt it needed a thread of its own to keep from hijacking that other thread.
My first post there is;
http://forum.treasurenet.com/index.php/topic,393353.msg2802679.html#msg2802679
I will continue here;
By the way, the coinalyzer mechanism will support adding a coin counter. It outputs a grounding pulse on the grey wire for every coin accepted. If you connect the leads of a vending machine coin counter to the grey wire and the red wire, it will increment the counter once for each coin accepted. I'm going to order a resettable counter for mine.
Bob
My first post there is;
http://forum.treasurenet.com/index.php/topic,393353.msg2802679.html#msg2802679
I will continue here;

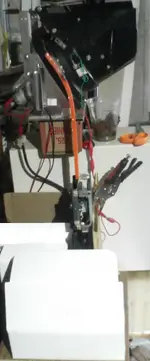

I just checked the coinalyzer and it was working again, but still very unreliable. I noticed the trigger timer was set to "short". I set the trigger timer to "common" and that cleared up the majority of the reliability issue. I'm now getting a clad in the copper 100:1 or less now vs 10:1 like it was. I've run 6 rolls so far and no coppers in the clad yet. I'll run the rest of the box and see how it does.kb4iqm said:The coinalyzer is an electronic coin mechanism for a vending machine and fits the industry standard coin mechanism mounts. I used to be in the vending business and still have some machines and parts in storage. I took an old vending machine coin door, stripped it down to the bare minimum, and made a stand to hold it vertical. I mounted the coinalyzer in place of the original mechanical coin mechanism, it fits perfectly. All I have to do is set a pail under the back of the coin door to catch the coins that pass. All rejects and coin returns go into the coin return hopper on the front of the coin door. The pass/reject/return port spacings on the coinalyzer are in the industry standard locations.blkcwbyhat said:
When I first set it up, it worked, but it had trouble discriminating reliably. It would pass some of what it should reject, and reject some of what it should pass. If I ran multiple passes it would eventially get them all right. Like if I run the reject clad cents through several times it would eventually get all of the copper out. Then do the same with the coppers and it would eventually get all of the clads out. After testing it like this for an hour or so, it stopped passing coins totally and rejecting everything fed to it. I put it aside to mess with later, have not tried it again since then.
If I can get the coin mechanism itself to work reliably, then I'll just set up a dime feed hopper from a slot machine with the discs resized for pennies. These hoppers can be bought for under $50 from vending suppliers that sell used parts on feebay, and replacement discs are available as they wear out. Would be less than $100 invested to automate the process if I do all of the mechanical work to put it together. Now that I think we can afford
Bob
By the way, the coinalyzer mechanism will support adding a coin counter. It outputs a grounding pulse on the grey wire for every coin accepted. If you connect the leads of a vending machine coin counter to the grey wire and the red wire, it will increment the counter once for each coin accepted. I'm going to order a resettable counter for mine.
Bob
Amazon Forum Fav 👍
Upvote
0
I've heard about the silver dollar's,but penny's?
.
