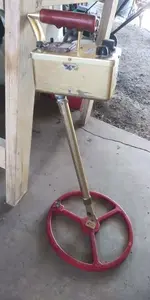

Information on a D-Tex Koin King coil wire or cable?

[west40texas]

Trying to find an old coil cable for a Koin King or someone with the knowledge on how to rewire as I have both connection ends! Thank you



Amazon Forum Fav 👍

A History of Mining on the Kenai Peninsula, Alaska - Grab it through Amazon!

[Old Bookaroo]

Howdy -

No replies - why don't you try posting in the "Metal Detector Forum" above - there is a subtitled "Other Brands" section.

At the risk of pointing out the obvious, have you tried a local detector dealer who also performs repairs?

Good luck to all,

The Old Bookaroo



[Ism]

Trying to find an old coil cable for a Koin King or someone with the knowledge on how to rewire as I have both connection ends! Thank you

It seems that if you have both ends, I don't think you can go wrong with wiring pin for pin. I.e., pin-1 to pin-1, pin-2 to pin-2...etc. If the detector requires shielded cable (I think most do), you will have to open up the detector control box and look at which pin of the connecter is wired to ground.



[Carl-NC]

The Koin King is a BFO design so the cable is just a simple coax with a center conductor and a shield. However, it was a coiled cable that went inside the coil shaft. You can probably get away without a coiled cable, just make it long enough for when the shaft is extended, and when the shaft is collapsed the cable will do its best to bunch up inside. Make sure the coax has a stranded wire center conductor so that its very flexible. You might also get away with cutting the cable off a pair of headphones, that way you get a coiled cable. It likely won't be coax but that's OK, just pick two of the conductors and wire them up.



[Old Bookaroo]

Here are two sites that may be of help:

https://metaldetectings.com/e107_files/public/dtex_manual.pdf

&

METAL DETECTOR FOR DISTINGUISHING BETWEEN PRECIOUS METAL OBJECTS AND OTHER METAL OBJECTS - D-TEX ELECTRONICS

The circuit for a portable metal detector includes a search coil oscillator which includes the search coil in the foot or probe of the detector and a tunable reference oscillator, with the oscillators

www.freepatentsonline.com

Good luck to all,

The Old Bookaroo
