Some Kind Of Clamp

[foundation hunter]

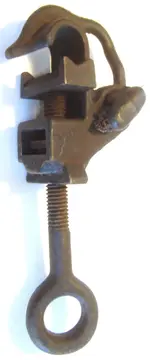

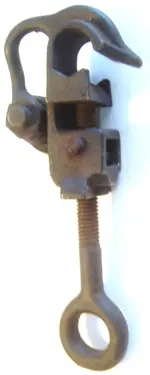

I know its some kind of clamp but what is it used for.It measures 6 inches long.
Thanks Gary



Amazon Forum Fav 👍

Agony and Death on a Gold Rush Steamer: The Disastrous Sinking of the Side-Wheeler Yankee Blade - Grab it through Amazon!

[hunterV3]

Looks like a high voltage grounding clamp.
Here's a similar one.



[Bigcypresshunter]

Looks like a high voltage grounding clamp.
Here's a similar one.

Ooooo good ID!

Is this the clamp that linesman use when they are working up high to temporarily ground themselves?



[Blind.In.Texas]

Looks like a high voltage grounding clamp.
Here's a similar one.

Ooooo good ID!

Is this the clamp that linesman use when they are working up high to temporarily ground themselves?

Probably so. Normally the clamps I put will have a square or hex head for permanent installations. Ring heads like that are for regular installation/removal of the same item.

I say 'SOLVED'!!



[SkyPirate]

SOLVED!



[mrs.oroblanco]

Definitely solved!

Here is one.

Nice find!!


B



[Arid-Zone-A-seeker]

It is a transformer stinger wire clamp. It hooks up the transformer to the high voltage wires. Grounds must be mechanical clamped to the wire/lead as in the pictures. and tested for personal protection.
The stinger clamp is not critical to safety cause if the wire falls out. it falls below the ground wire away from the high voltage. I have installed a couple of hundred of them as a groundman working at a Electrical CO/OP. Most of the new ones are cad. plated brass now days.
Arid.



[Bigcypresshunter]
