Rockchucker
Newbie
- Apr 27, 2020
- 3
- 1
- Detector(s) used
- White's PulseScan TDI SL, Pulse Star II Pro
- Primary Interest:
- All Treasure Hunting

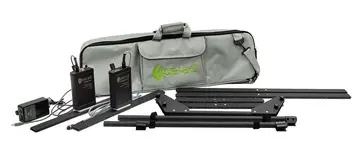

This is a pulsed dipole GPR with 3 sets of Antennas, 100, 300, and 500 MHz. Also comes with standard
Battery pack 10 x 1.2V 2400mAh, and larger capacity battery. Android Tablet, cables, tools, documentation
and carry case.
*This is the same unit available for purchase from Terra Exploration Group (TexGru) for $9995 and you
have probably seen it used on the series Treasure Quest and Expedition Unknown.
I purchased this Unit Brand New, it has been carefully used in the field 4x and is in Excellent Condition!
Only minimal abrasions on the bottom of antennas from contact with the ground as I am OCD Anal when
is comes to my equipment...
*Photo 7 is one of my Actual Scans of a concrete bridge in Queen Valley AZ.
Technical Specifications:
Frequency Bandwidth 10 MHz - 800 MHz
Central Frequency 100 MHz / 300 MHz / 500 MHz
Operating Time Windows 75 ns / 150 ns
Dynamic Range 120 dB min
Pulse Repetition Frequency 75 kHz
Pulse Voltage 600 V
Pulse Length 10 ns
Pulse Rise Time 2 ns
Peak Tx Power 800 W
Power Consumption 270 mAh
Batteries 10/20 x 2.4 Ah NiMH 1.2 V
Autonomy with One Charge 7 h / 14 h
Charge Time 5 h / 10 h
ADC Range 8 bits
Data Acquisition Rate 18.2 traces/second
Samples per Trace 585
GPR Interface: UART over USB
Weight 2.5 kg
Note: Due to the expense of this unit, I would prefer that you exercise your Constitutional
rights and make the trip out to my location in AZ so I can show you proper assembly and
operation, followed by payment made at my local Chase bank. If this is not possible, I would
accept PayPal and ship FedEx for $58...
