Help with Battery Polarity on my Excalbur1000

[stoneshirt]

Hello,every Body.
Can someone send something my way?
I DE-Soldered the Wires on my Excalibur,where they entered the Ilklite Fitting on the Battery end.Inside that Chrome Nut.I was repairing the Cable,which had some Rot just as it enters the Chrome Nut.I failed to take notice of the Polarity at the Solder Joints.One Wire is Blue,and the other is Brown.Looking at it as if it were a Clock Face,with the "Alignment Pin" Hole at 6 o'clock,the Solder points are at 9 O'clock and 3 O'clock.Any help would be greatly appreciated.Thanks.Ken



Amazon Forum Fav 👍

A History of Mining on the Kenai Peninsula, Alaska - Grab it through Amazon!

[Treasure_Hunter]

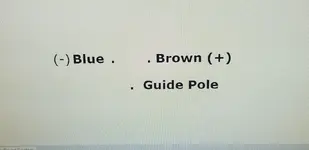

Here is info that I have, this is the way all 4 of mine are wired. Picture is looking at the ikelite connector that plugs into the battery pod from the top looking down at it, guide pole to the bottom. Left pin is negative and blue, right pin is positive and brown.

(I am not responsible for the way yours is wired.)



[stoneshirt]

Treasure Hunter.
Thank you for the quick Reply.
I did'nt quite understand when you said "looking down from the Top" Does this look correct??
Thanks a lot,I appreciate the help.Ken.



[I Dig U Dig]



[stoneshirt]

Hi idigudig.A very belated Thank for the Response....stoneshirt
