Discussing 2-box operation

[The Silver Pirate]

So, I am still wanting a 2-box, and it will probably wind up being a Gemini-3. But I really want to ask how on the heck does the Whites TM-808 work I saw a video produced by Whites and I watched the guy put it together. I may be wrong, but I didn't see where the two loops were electrically connected to the box Makes no sense to me. They are just slipped into the poles and tightened down with a thumb screw. At least the Gemini has electronics and batteries in each box. I just can't wrap my head around the technical operation of the TM808. Just curious.



Amazon Forum Fav 👍

How to Research for Treasure Hunting and Metal Detecting From Lead Generation to Vetting - Grab it through Amazon!

[Ism]

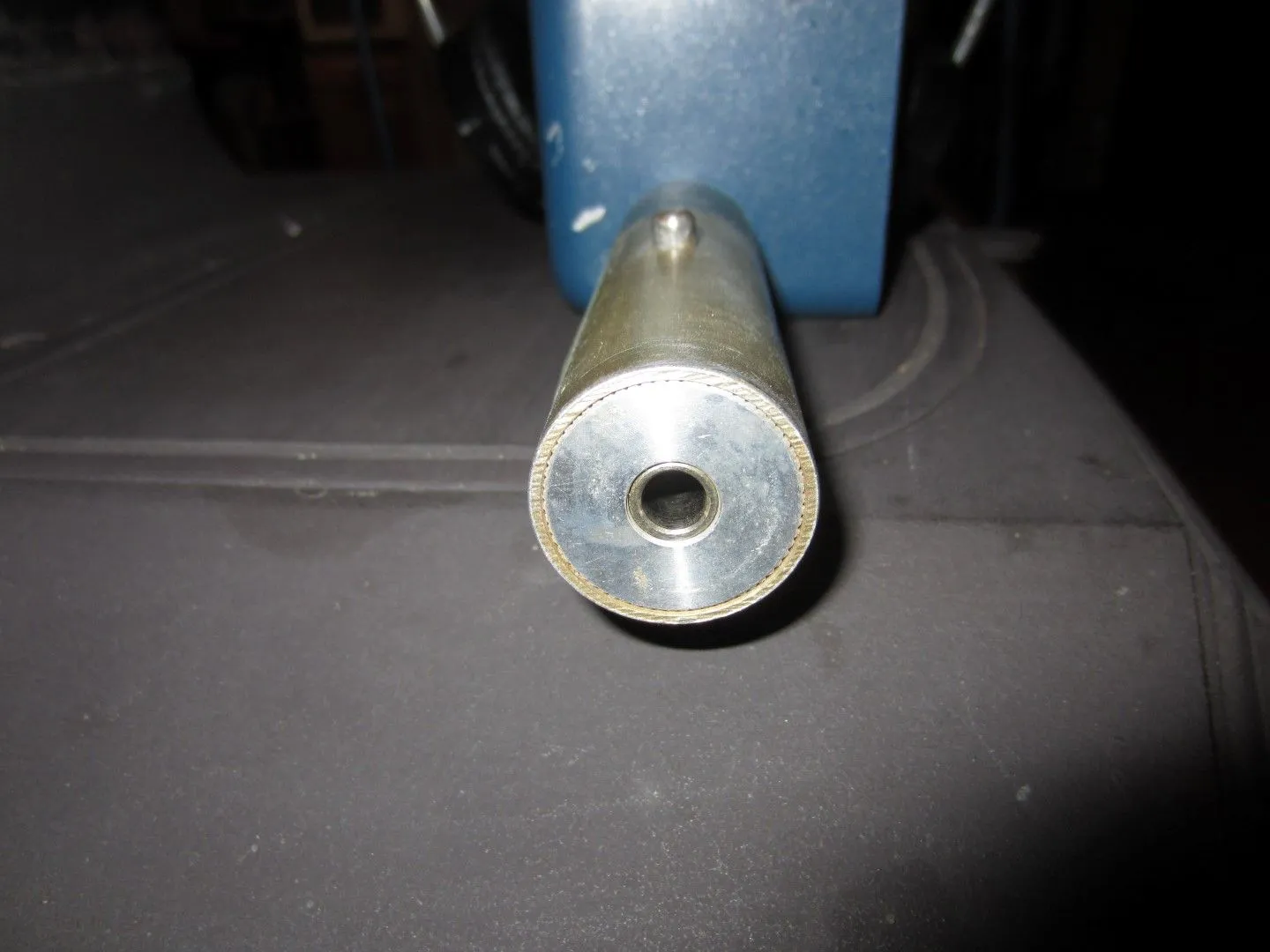

It uses a 1/4 stereo jack in the tube.



[The Silver Pirate]

Ok. Well that makes sense now. They didn't show that, or I missed it. Thanks.



[Ism]

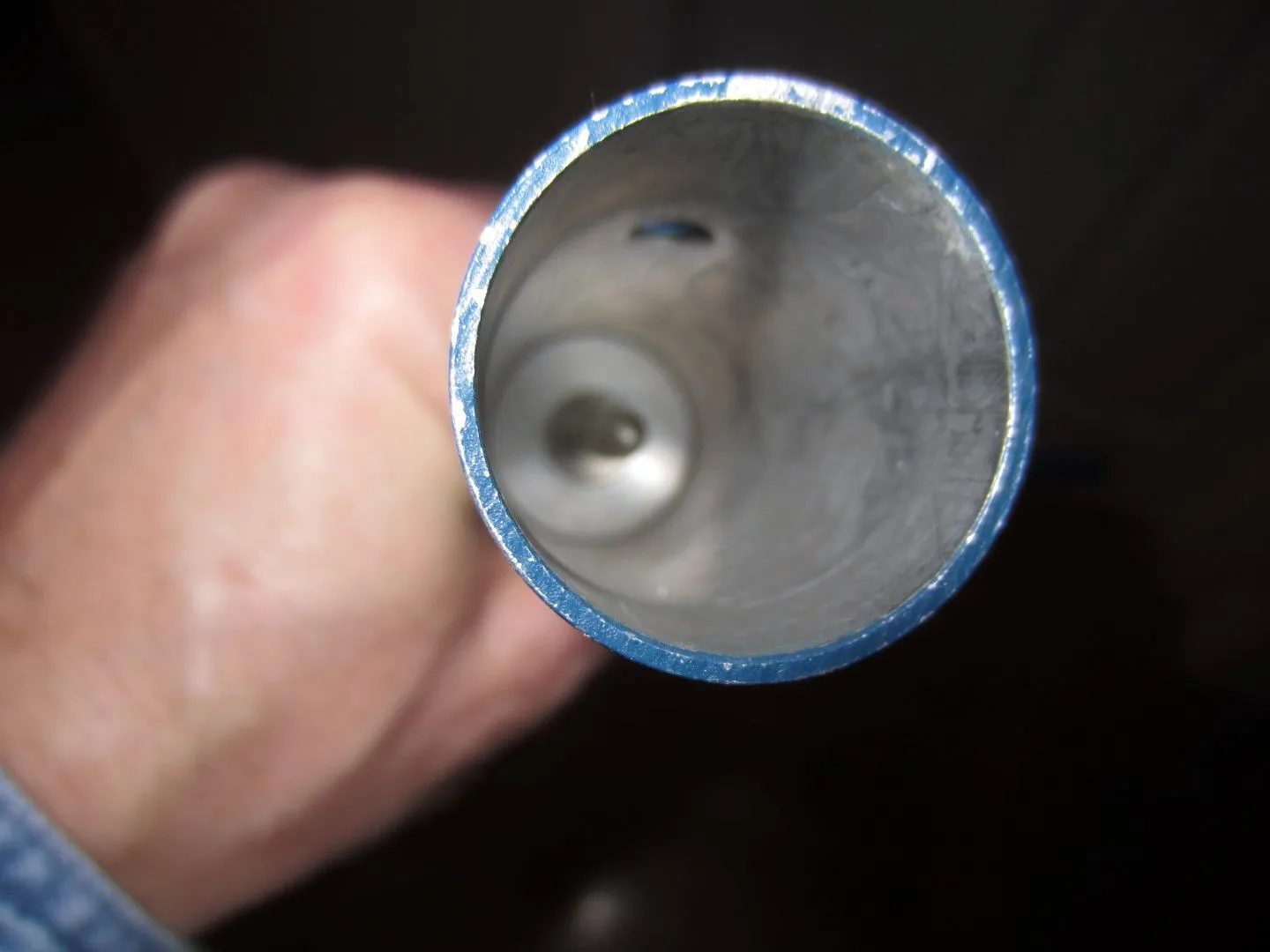

the pic of the plug inside the tube of the antenna isn't clear, but you get the idea.
it connects to the jack when the tubes are slid together.



[The Silver Pirate]

Thanks for the pics. That clears things up.
